Marine Elevator Multi-Fault Diagnosis and Critical-Parts Repair Case in Qingdao

MARINE ELEVATOR CASE / OVERVIEW

Repair planning built around safety, port time and return to service

Several serious symptoms were documented in the same work package. A safe diagnosis must therefore verify both the control decision and the field signals from travel limits, leveling and door-zone devices.

The case shows how marine elevator repair planning links symptoms to an onboard test sequence and a pre-arranged package of generic switches, sensors, lubrication parts and tools.

01 / FAULTS & RISKS

Compound operating faults

• Differentiate control-logic failure from intermittent field-signal faults
• Investigate failure to stop, incorrect floor stopping and controller freezing
• Treat uncontrolled downward movement as a safety-critical symptom requiring controlled isolation and testing
• Prepare critical parts before boarding to protect the vessel's repair window

02 / INSPECTION & REPAIR

Diagnostic and parts scope

• 01

  Inspect failure-to-stop and wrong-floor stopping symptoms

• 02

  Check uncontrolled downward movement and controller-freeze events

• 03

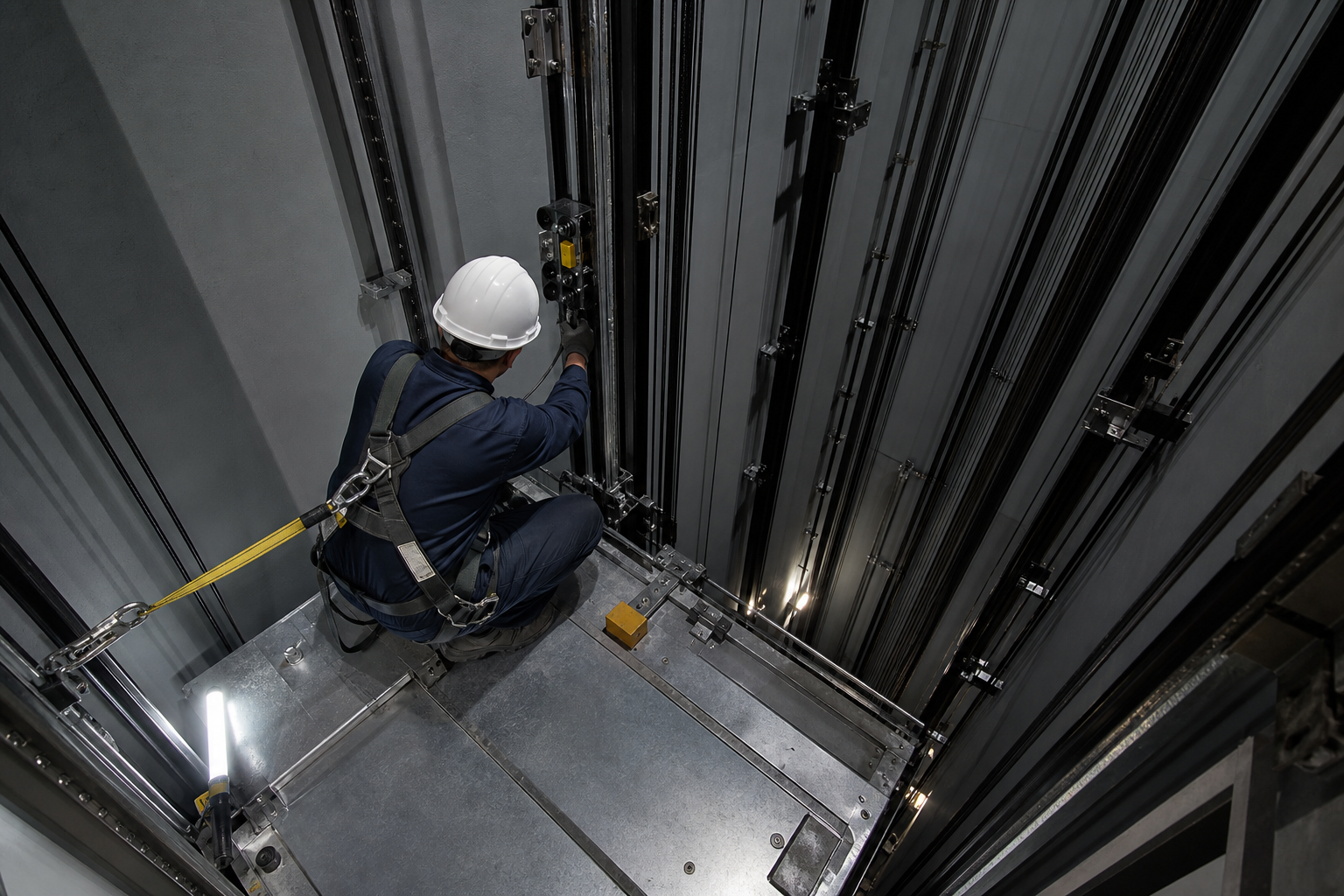

  Inspect guide-rail travel limit switches and their mounting condition

• 04

  Verify leveling detector and door-zone related signals

• 05

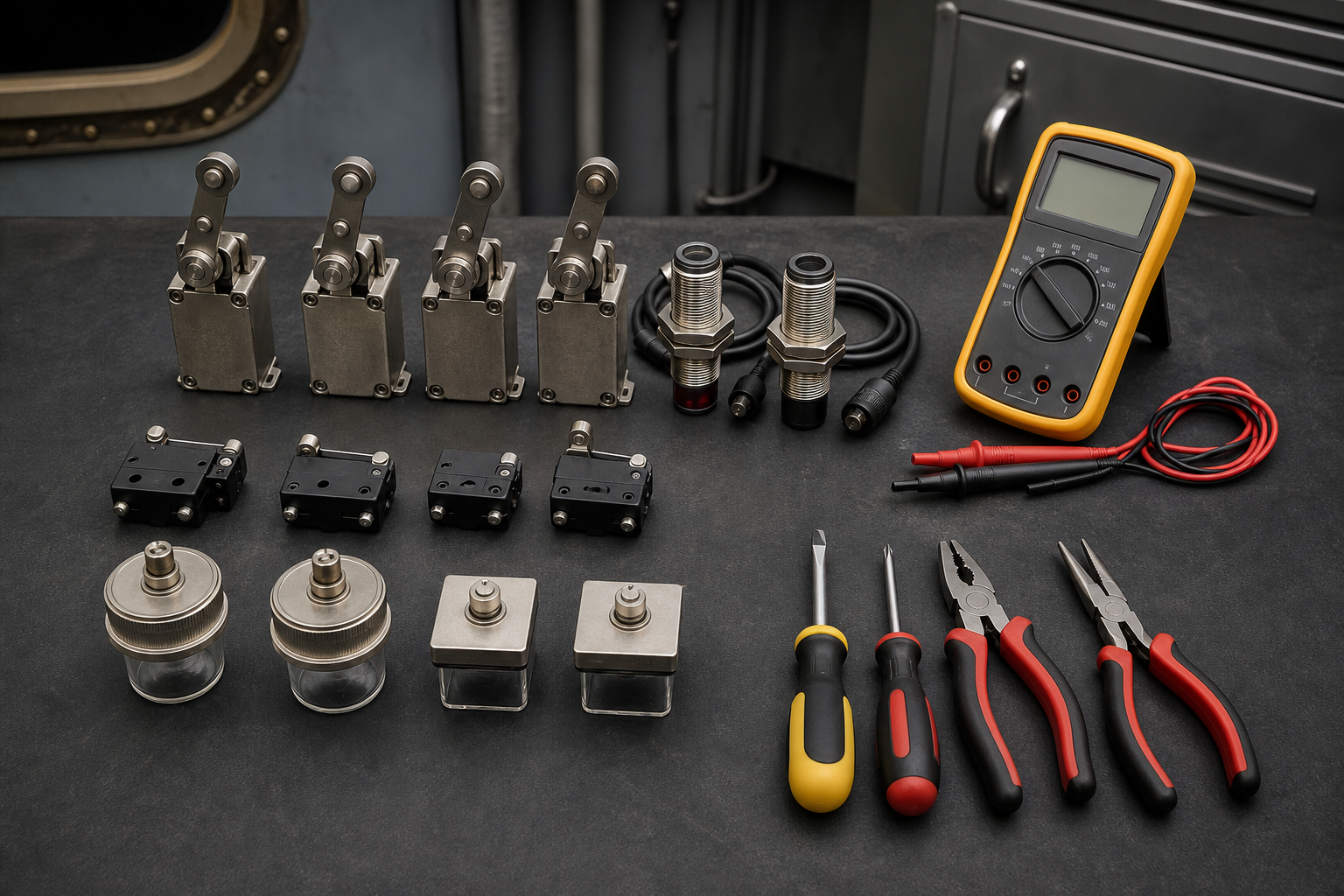

  Prepare generic travel switches, micro switches, oil cups and photoelectric leveling sensors as identified in the work record

03 / ONBOARD PROCESS

Fault-led onboard repair process

• 01Obtain a detailed fault timeline and note whether symptoms are repeatable or intermittent
• 02Review electrical drawings, input/output logic and previous repair records
• 03Prepare critical components, test equipment and safe isolation procedure
• 04Board in coordination with the agent, reproduce safely, diagnose and repair
• 05Complete operational, leveling, door and safety-related tests before handover

04 / DELIVERABLES

Repair output

05 / PORT COVERAGE

Marine elevator repair across China ports

• The same marine elevator repair method can support vessels calling at Qingdao and other accessible China ports.
• Marine elevator Shenzhen and marine elevator repair Guangdong attendance can be coordinated through local ship-agent and port-access procedures.
• Marine elevator repair Shanghai service is available subject to fault-data review, engineer scheduling, parts readiness and boarding approval.
